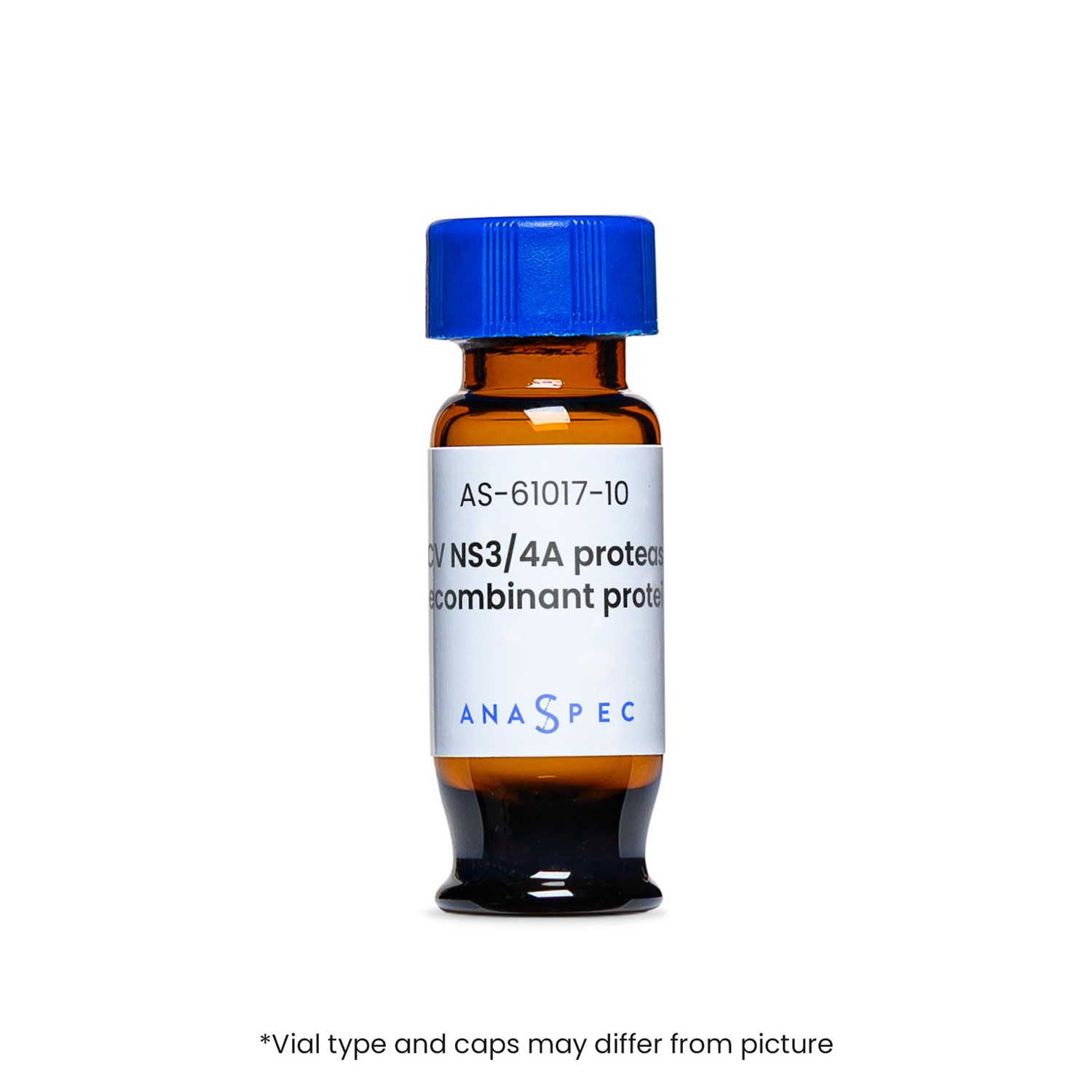

HCV NS3/4A protease genotype 1b, recombinant

Check your price
  • Cat.Number : AS-61017-5
  • Availability :
    In stock
  • Shipping conditions : Ice fees will apply



NS3 protease of hepatitis C virus (HCV), located on the N-terminal domain of HCV NS3, is responsible for the cleavage at the NS3/NS4A, NS4A/NS4B, NS4B/NS5A, and NS5A/NS5B sites of the nonstructural protein. The HCV NS3 is a chymotrypsin-like serine protease. It requires a cofactor, a 54 amino acid NS4 protein, to reach its optimal activity. The X-ray crystal structure studies show that NS3 forms a tight non-covalent complex with NS4. The NS3/4A protease is essential for viral replication and the formation of infectious viral particles, and thus has been considered as one of the most attractive targets for anti-HCV therapy.

The recombinant HCV NS3/4A protease (genotype 1b, strain: HC-J4; NCBI Accession: AF054247) was expressed in E. Coli. HCV NS3/4A protease is a 217 amino acid fusion protein (22.7 kDa) with NS4A co-factor fused to the N-terminus of NS3 protease domain. Therefore, HCV NS3/4A protease is in active form and the pre-activation by pep4A or pep4AK is not necessary. 5-20 ng of HCV NS3/4A protease is sufficient for FRET-based activity assays (SensoLyte® HCV protease assay).


Molecular Mass/ Weight
  • 22.7 kDa
  • Unconjugated
Quantity & Purity
  • lot dependent
  • ≥95% by SDS-PAGE
Storage & stability
  • In solution
Storage Buffer
  • 20 mM Tris-HCl, pH 8.0, 20% Glycerol, 100 mM KCl, 1 mM DTT and 0.2 mM EDTA.
Storage Conditions
  • Store at -80°C. Avoid repeated freeze-thaw cycles.
Biomarker Target
Unit definition
  • One unit of protease hydrolyzes 1 picomole of 5-FAM/QXL™ FRET substrate per minute at pH 7.5 at 25°C.
  • recombinant HCV NS3/4A protease (genotype 1b, strain: HC-J4; NCBI Accession: AF054247)
Research Area
Sub-category Research Area
  • Research use
Source / Species
  • Hepatitis C Virus

You may also be interested in the following product(s)

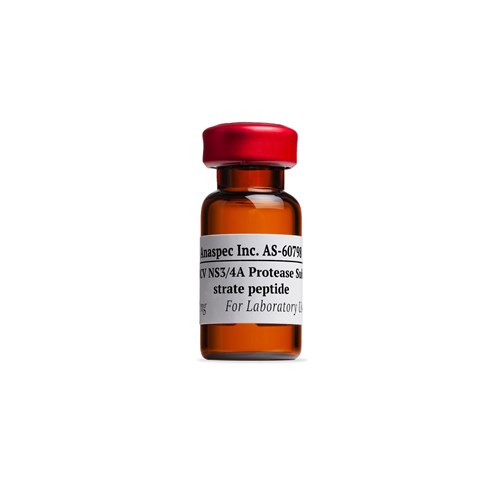

HCV NS3/4A Protease Substrate - 1 mg

Cat.Number : AS-60798
$872.00 Excl. Tax

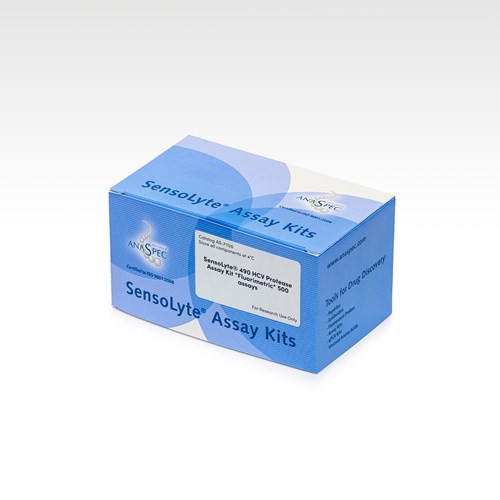

SensoLyte® 520 HCV Protease Assay Kit Fluorimetric - 1 kit
