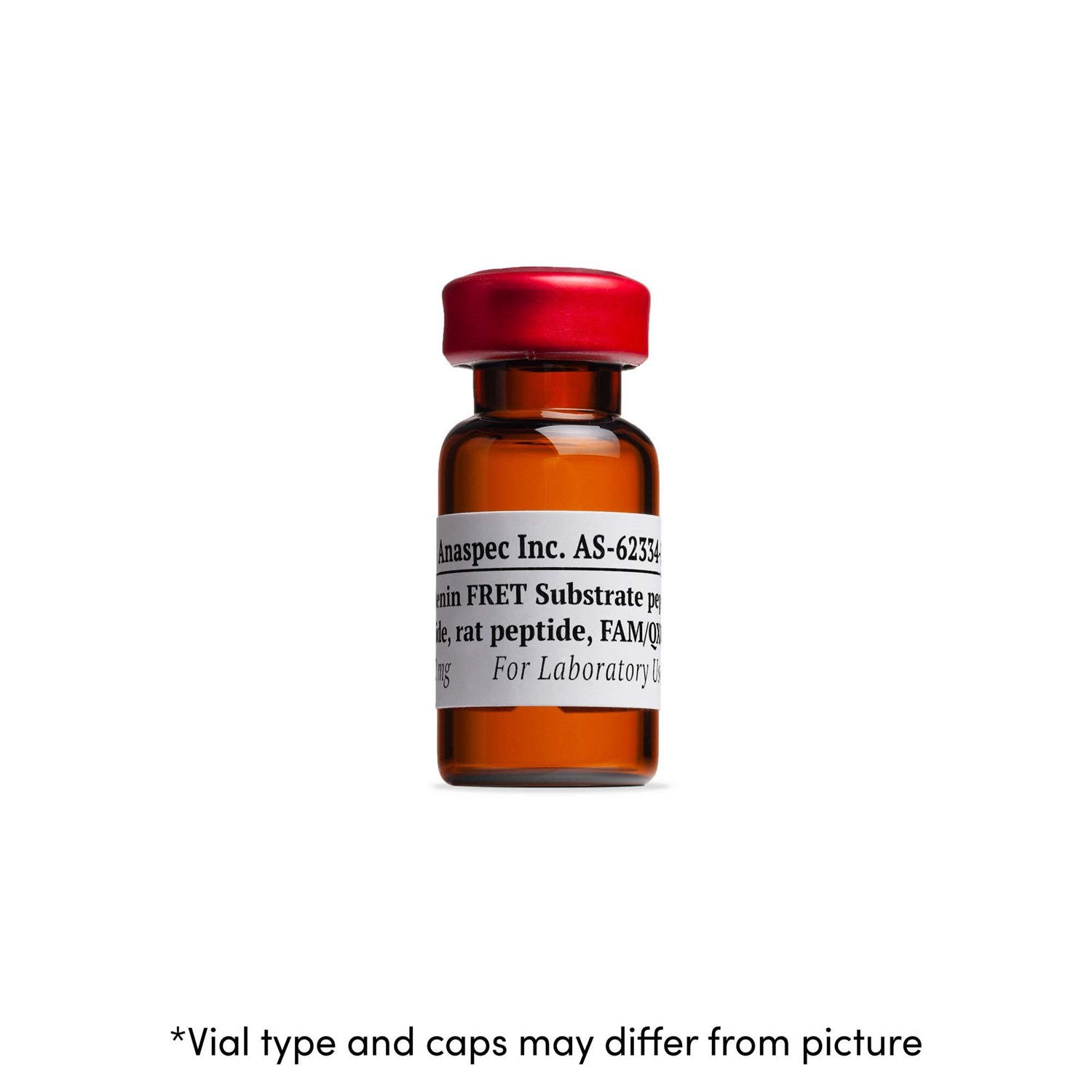

Renin FRET Substrate (5-FAM/QXL® 520), rat - 0.1 mg

Check your price
  • Cat.Number : AS-62334-01
  • Availability :
    In stock

Alternative choices


This renin FRET peptide is a specific substrate for rat renin. Aspartyl protease cleaves angiotensinogen to yield angiotensin I, which is further converted to angiotensin II. The renin-angiotensin system is a coordinated hormonal cascade in the control of cardiovascular, renal, and adrenal function. It governs body fluid and electrolyte balance, as well as arterial pressure. Since an overactive renin-angiotensin system leads to hypertension, renin is an attractive target for the treatment of this disease. This renin peptide substrate may be used for screening renin inhibitors. In the FRET peptide, the fluorescence of 5-FAM is quenched by QXL® 520. Upon cleavage into two separate fragments by rat renin, the fluorescence of 5-FAM is recovered, and can be monitored at excitation/emission = 490/520 nm. The SensoLyte® 520 Renin Assay Kit (cat # 72040) contains the human renin FRET substrate.


Molecular Mass/ Weight
  • 2194.4
Absorbance (nm)
  • 490
Emission (nm)
  • 520
Conjugation type
  • Double dyes
Modification Name
  • Conjugated
Quantity & Purity
  • Peak Area by HPLC ≥95%
Storage & stability
  • Lyophilized
Storage Conditions
  • - 20 °C Protected from light
Biomarker Target
Detection Method
Research Area
Sub-category Research Area
  • Research use
