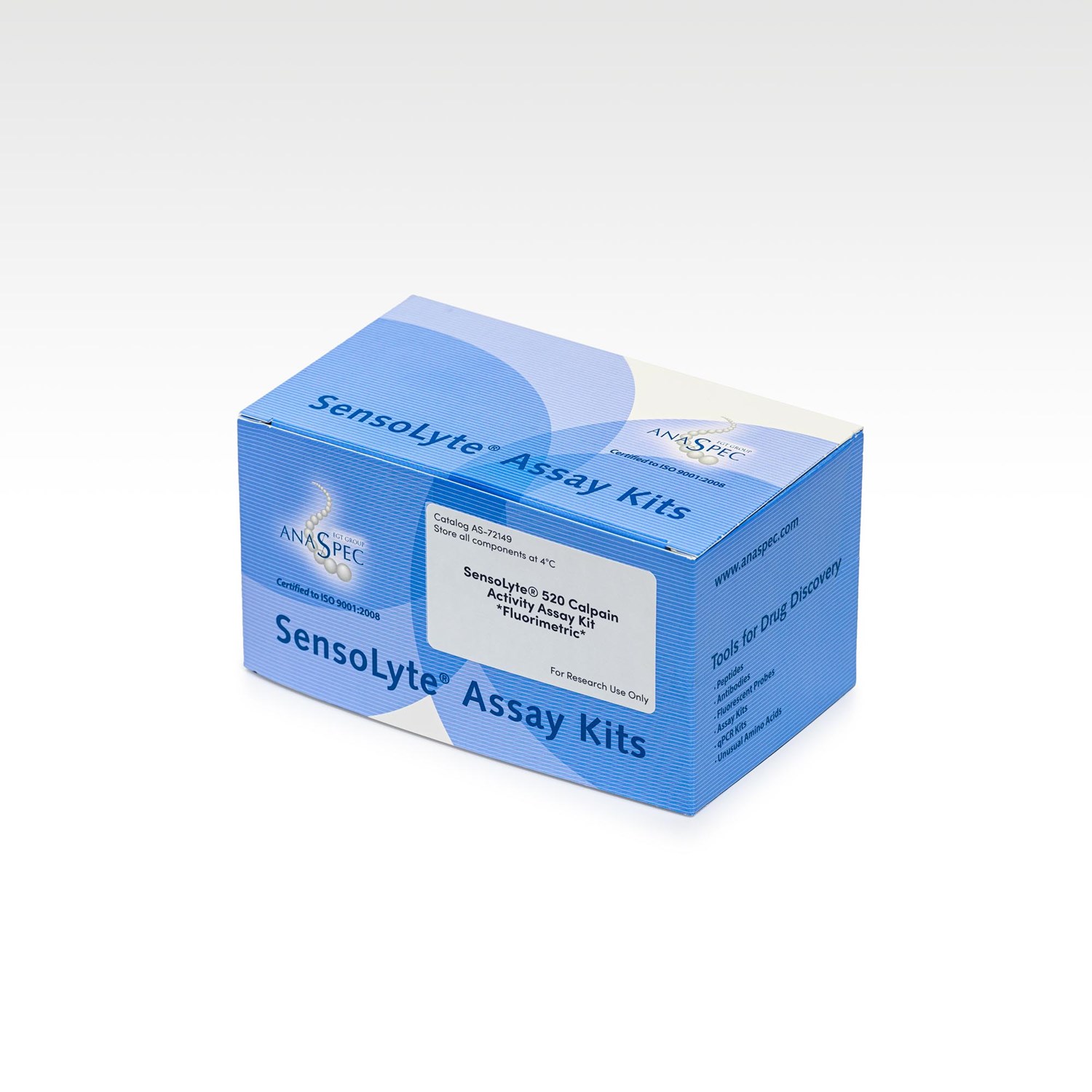

SensoLyte® 520 Calpain Activity Assay Kit Fluorimetric - 1 kit

Check your price
  • Cat.Number : AS-72149
  • Availability :
    In production
  • Shipping conditions : Ice fees will apply

Alternative choices


The calpains are a family of intracellular Ca2+ dependent cysteine proteases. The best-characterized calpains are isoforms 1 (µ) and 2 (m). They respond to Ca2+ signals by cleaving many specific proteins, thereby irreversibly modifying their function(s). Calpains are implicated in a variety of Ca2+ regulated cellular processes as well as various pathological phenomena such as ischemic injury, muscular dystrophy, diabetes, cataract, atherosclerosis, Alzheimer’s disease, and cancer. Calpains represent potential therapeutic targets for drug discovery.
The SensoLyte® 520 Calpain Assay Kit is optimized for detecting calpain activity. This kit contains a novel internally quenched 5-FAM/QXL™ 520 FRET substrate. Calpain protease cleaves the FRET substrate into two separate fragments resulting in the release of 5-FAM fluorescence which can be monitored at excitation/emission= 490/520 nm. Increase in fluorescence is proportional to the calpain activity. The assay can detect both calpain 1 (µ) and 2 (m) activities and is ideal for kinetic study of these enzymes. The long wavelength fluorescence of 5-FAM is less interfered by the autofluorescence of components in biological samples and test compounds. The assays are performed in a convenient 96-well microplate format.


Kits components
  • Component A: 5-FAM/QXL 520 Calpain Substrate, Ex/Em=490 nm/520 nm upon cleavage: 1 mM, 50 µL Component B: 5-FAM, Fluorescence Reference Standard, Ex/Em=490 nm/520 nm: 1 mM, 10 µL Component C: Assay Buffer: 20 mL Component D: Human Calpain: 0.5 mg/mL, 100 µL Component E: Calpain Inhibitor: 50 µM, 10 µL Component F: DTT: 1 M, 20 µL
UniProt number
  • P07384
Absorbance (nm)
  • 490
Emission (nm)
  • 520
Storage & stability
Storage Conditions
  • Store component D at -80°C. Store all other components at -20°C. Component C can be stored at room temperature for convenience. Protect components A and B from light and moisture.
Biomarker Target
Detection Method
Detection Limit
  • 32.5 ng/ml
Research Area
Sub-category Research Area
  • Research use

You may also be interested in the following product(s)

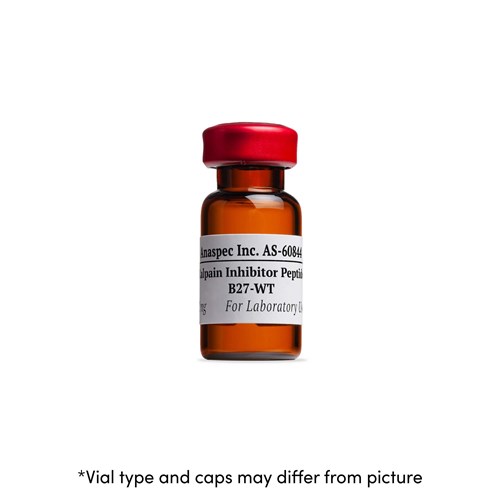

Calpain Inhibitor Peptide, B27-WT - 0.5 mg

Cat.Number : AS-60844
$147.00 Excl. Tax

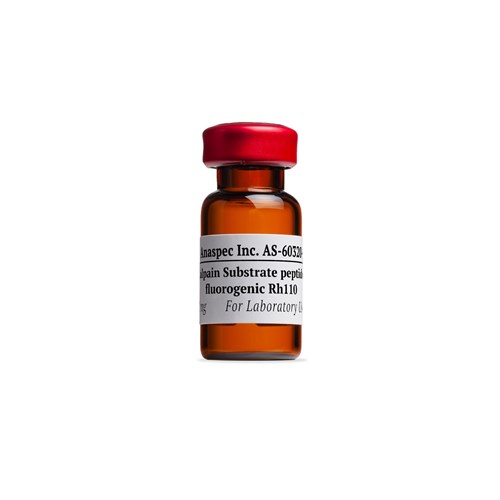

Calpain Substrate, Fluorogenic, (Z-AA)2Rh110 - 5 mg
